2001-2004 Chevrolet / GMC S400 Single Install Kit No Turbo Candy Blue HSP Diesel

Sorry - this product is no longer available

2001-2004 Chevrolet / GMC S400 Single Install Kit No Turbo Candy Blue HSP Diesel
SKU: 115-HSP-CB-GVJG
Manufacturer: HSP Diesel
$2,520.00

With the advancements made over the past several years in turbo chargers, we have developed a great replacement for your tired and worn out IHI turbo. With a great selection of turbo sizes, any daily driver or full race truck can utilize the HSP Single Turbo Kit.

These S400 series kits are designed to fully replace your factory turbo. We added a more robust and more efficient Borg Warner turbo in its place. Not only will you gain the advantage of the turbo, but this system includes all mandrel bent 3 inch intercooler tubing, as well as, our proven Cold Air Intake system. Only the best components are selected to be a part of our kits.

Track and proven dyno results is what we are after, and you can be sure that the results you are looking for can be found with the HSP Single Turbo Install Kit. Power levels will mainly depend on current modifications to your truck but can range from 600HP to 1200HP. Turbo sizing and tuning are very important to be sure you are getting the most from your new kit.

Capable horsepower 600-1000 plus HP depending on turbo, tuning, and fuel system options.
Details:

  • 2001-2004 Chevrolet / GMC S400 Single Install Kit - No Turbo
  • Designed To Fully Replace Your Factory Turbo
  • Mandrel Bent 3 Inch Intercooling Tubing
  • Finished In Candy Blue Powdercoat
  • Made In The USA
  • Sold As A Kit
  • SKU: 115-HSP-CB

Fits:

  • 2001-2004 Chevrolet / GMC Truck with Duramax Engine
  • Compatible With: LB7: 01-04 VIN Code 1

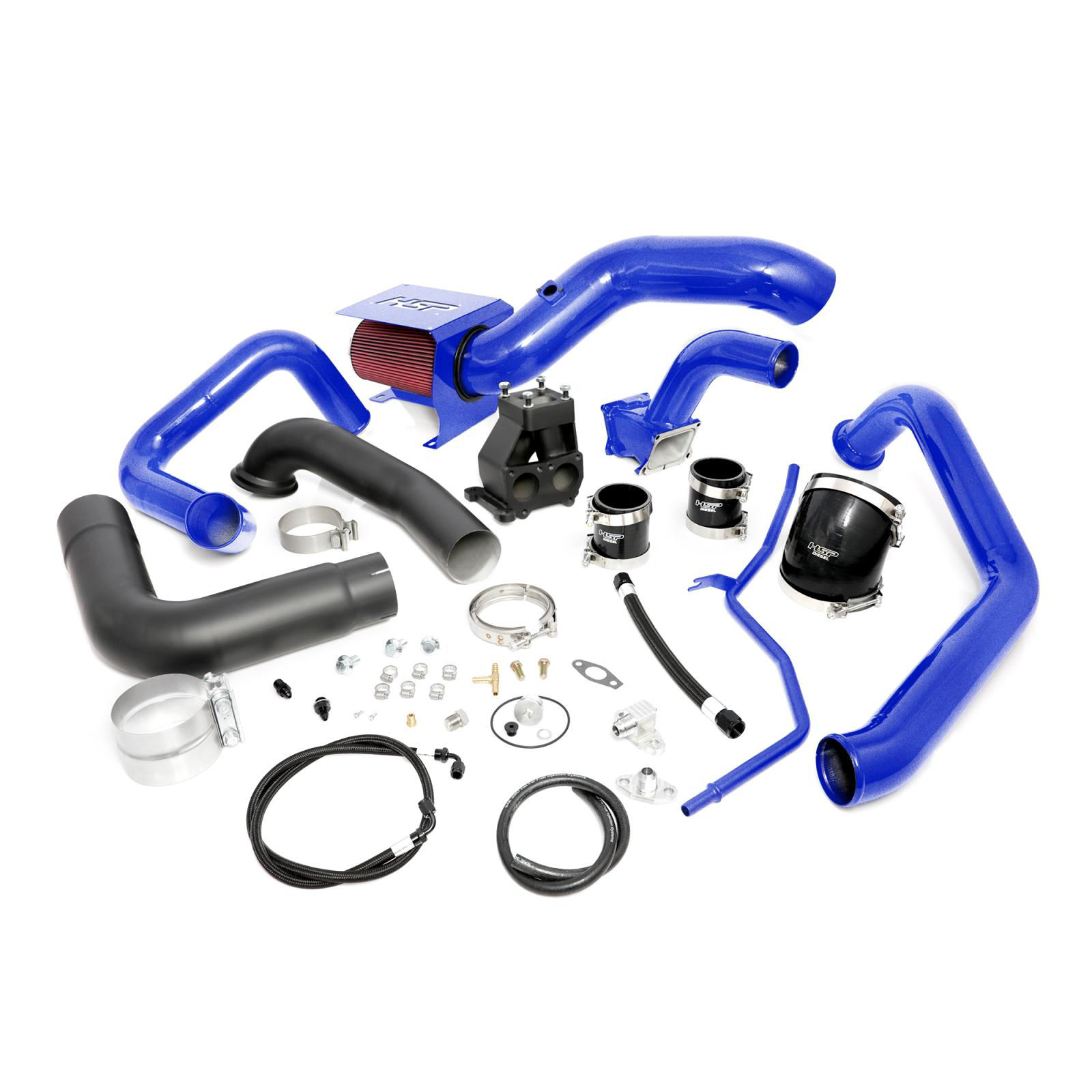

Included Components:

  • (2) 3 Inch x 4 Inch Straight Boots (430-RFAB)
  • (4) 3 Inch T-Bolt Clamps (422-RFAB)
  • (1) S400 Discharge Clamp (426-RFAB)
  • (1) S400 Discharge O-Ring (643-RFAB)
  • (1) 5/16 Inch Brass Barbed Tee (812-RFAB)
  • (1) LB7 Fuel Plug (629-RFAB)
  • (24 Inch) 5/16 Inch Fuel Hose (402-RFAB)
  • (6) 5/16 Inch Worm Gear Clamp (404-RFAB)
  • (3) 10-32 x 3/8 Inch Button Head Screws Zinc
  • (2) M4-0.7 x 10mm Socket Cap Screw Zinc
  • (4) 1/8 Inch Steel Rivets
  • (17.25 Inch) Trim Lock (411-RFAB)
  • 45 Degree 5 Inch Boot (438-RFAB)
  • (2) 5 Inch T-Bolt Clamps (425-RFAB)
  • (1) 5 Inch Filter R1298 (410-RFAB)
  • (1) L40AA-Exhaust Clamp (429-RFAB)
  • (1) 4 Inch Quick Release V-Band (768-RFAB)
  • (1) 3.5 Inch Accuseal Band Clamp (470-RFAB)
  • (4) Pedestal Studs (912-RFAB)
  • (4) M10 Lock Washers
  • (4) M10 Nuts
  • (3) M12 x 1.75x25mm Flange Bolt
  • (1) Single Kit Feed Line (450-RFAB)
  • (1) Single Kit Drain Line (448-RFAB)
  • (1) -4AN to M14 x 1.5 Feed Line Fitting to Block with Washer (1512-HSP)
  • (1) -4AN to 1/4 Inch NPT Feed Line Fitting to Turbo (453-RFAB)
  • (1) Drain Fitting to Block (602-RFAB)
  • (1) Drain Fitting to Turbo (605-RFAB)
  • (1) LB7-LMM Turbo Block Gasket (466-RFAB)
  • (2) M8 x 1.25x20mm Socket Cap Turbo Drain Bolts
  • (1) Single Coolant Plug M30 (796-RFAB)
  • (1) 12mm Factory Oil Feed Plug (457-RFAB)
  • (1) 1/8 Inch NPT Plug
  • (1) 1/2 Inch Coolant Plug (816-RFAB)
  • 1/2 Inch Worm Gear Clamp (405-RFAB)

Benefits:

  • Increased power
  • Performance and spool up
  • Powdercoat option to dress up engine bay
  • Upgraded high strength silicone boots
  • Many powdercoat colors available
  • Heat deflection box with air tight seal to prevent hot engine temps from entering filter

With the advancements made over the past several years in turbo chargers, we have developed a great replacement for your tired and worn out IHI turbo. With a great selection of turbo sizes, any daily driver or full race truck can utilize the HSP Single Turbo Kit.

These S400 series kits are designed to fully replace your factory turbo. We added a more robust and more efficient Borg Warner turbo in its place. Not only will you gain the advantage of the turbo, but this system includes all mandrel bent 3 inch intercooler tubing, as well as, our proven Cold Air Intake system. Only the best components are selected to be a part of our kits.

Track and proven dyno results is what we are after, and you can be sure that the results you are looking for can be found with the HSP Single Turbo Install Kit. Power levels will mainly depend on current modifications to your truck but can range from 600HP to 1200HP. Turbo sizing and tuning are very important to be sure you are getting the most from your new kit.

Capable horsepower 600-1000 plus HP depending on turbo, tuning, and fuel system options.
Details:

  • 2001-2004 Chevrolet / GMC S400 Single Install Kit - No Turbo
  • Designed To Fully Replace Your Factory Turbo
  • Mandrel Bent 3 Inch Intercooling Tubing
  • Finished In Candy Blue Powdercoat
  • Made In The USA
  • Sold As A Kit
  • SKU: 115-HSP-CB

Fits:

  • 2001-2004 Chevrolet / GMC Truck with Duramax Engine
  • Compatible With: LB7: 01-04 VIN Code 1

Included Components:

  • (2) 3 Inch x 4 Inch Straight Boots (430-RFAB)
  • (4) 3 Inch T-Bolt Clamps (422-RFAB)
  • (1) S400 Discharge Clamp (426-RFAB)
  • (1) S400 Discharge O-Ring (643-RFAB)
  • (1) 5/16 Inch Brass Barbed Tee (812-RFAB)
  • (1) LB7 Fuel Plug (629-RFAB)
  • (24 Inch) 5/16 Inch Fuel Hose (402-RFAB)
  • (6) 5/16 Inch Worm Gear Clamp (404-RFAB)
  • (3) 10-32 x 3/8 Inch Button Head Screws Zinc
  • (2) M4-0.7 x 10mm Socket Cap Screw Zinc
  • (4) 1/8 Inch Steel Rivets
  • (17.25 Inch) Trim Lock (411-RFAB)
  • 45 Degree 5 Inch Boot (438-RFAB)
  • (2) 5 Inch T-Bolt Clamps (425-RFAB)
  • (1) 5 Inch Filter R1298 (410-RFAB)
  • (1) L40AA-Exhaust Clamp (429-RFAB)
  • (1) 4 Inch Quick Release V-Band (768-RFAB)
  • (1) 3.5 Inch Accuseal Band Clamp (470-RFAB)
  • (4) Pedestal Studs (912-RFAB)
  • (4) M10 Lock Washers
  • (4) M10 Nuts
  • (3) M12 x 1.75x25mm Flange Bolt
  • (1) Single Kit Feed Line (450-RFAB)
  • (1) Single Kit Drain Line (448-RFAB)
  • (1) -4AN to M14 x 1.5 Feed Line Fitting to Block with Washer (1512-HSP)
  • (1) -4AN to 1/4 Inch NPT Feed Line Fitting to Turbo (453-RFAB)
  • (1) Drain Fitting to Block (602-RFAB)
  • (1) Drain Fitting to Turbo (605-RFAB)
  • (1) LB7-LMM Turbo Block Gasket (466-RFAB)
  • (2) M8 x 1.25x20mm Socket Cap Turbo Drain Bolts
  • (1) Single Coolant Plug M30 (796-RFAB)
  • (1) 12mm Factory Oil Feed Plug (457-RFAB)
  • (1) 1/8 Inch NPT Plug
  • (1) 1/2 Inch Coolant Plug (816-RFAB)
  • 1/2 Inch Worm Gear Clamp (405-RFAB)

Benefits:

  • Increased power
  • Performance and spool up
  • Powdercoat option to dress up engine bay
  • Upgraded high strength silicone boots
  • Many powdercoat colors available
  • Heat deflection box with air tight seal to prevent hot engine temps from entering filter
