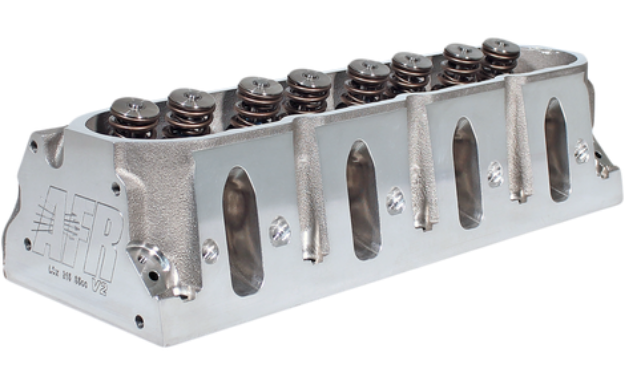

205cc LS1 Cylinder Head
SKU: AFR-1510
Manufacturer: AFR
$2,389.00

AFR’s 205cc LSX heads are the cost effective performance choice over re-worked factory heads. They feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings, Titanium retainers and high quality components throughout. Recommended for street, towing, or street/strip engines with displacements up to 383 cubic inches, operating up to 6300 RPM. Requires minimum 3.900” bore size for intake valve clearance. This product is street legal in 50 states for 2005 and older emission controlled vehicles under (CARB #D-250-4)

Package Components include:

100% CNC Ported Exhaust Ports
100% CNC Ported Intake Ports
Competition 5-angle Valve Job
8mm Bead Lock Intake Valve, 2.020” x 4.900" Overall Valve Length
8mm Bead Lock Exhaust Valve, 1.600” x 4.900" Overall Valve Length
PAC Racing Spring 1.290" OD Hydraulic Roller Dual Valve Spring,
140 lbs on seat, .600" maximum lift, Max RPM 6300-6500, less than 235* duration, upgraded spring #8019 recommended for higher RPM & larger cams
7° Titanium Retainers 1.245" O.D x .885" I.D x .655" I.D
7° Bead Lock Valve Keepers
Viton Valve Seals .600" O.D x .495" I.D
Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D


AFR’s 205cc LSX heads are the cost effective performance choice over re-worked factory heads. They feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings, Titanium retainers and high quality components throughout. Recommended for street, towing, or street/strip engines with displacements up to 383 cubic inches, operating up to 6300 RPM. Requires minimum 3.900” bore size for intake valve clearance. This product is street legal in 50 states for 2005 and older emission controlled vehicles under (CARB #D-250-4)

Package Components include:

100% CNC Ported Exhaust Ports
100% CNC Ported Intake Ports
Competition 5-angle Valve Job
8mm Bead Lock Intake Valve, 2.020” x 4.900" Overall Valve Length
8mm Bead Lock Exhaust Valve, 1.600” x 4.900" Overall Valve Length
PAC Racing Spring 1.290" OD Hydraulic Roller Dual Valve Spring,
140 lbs on seat, .600" maximum lift, Max RPM 6300-6500, less than 235* duration, upgraded spring #8019 recommended for higher RPM & larger cams
7° Titanium Retainers 1.245" O.D x .885" I.D x .655" I.D
7° Bead Lock Valve Keepers
Viton Valve Seals .600" O.D x .495" I.D
Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D
