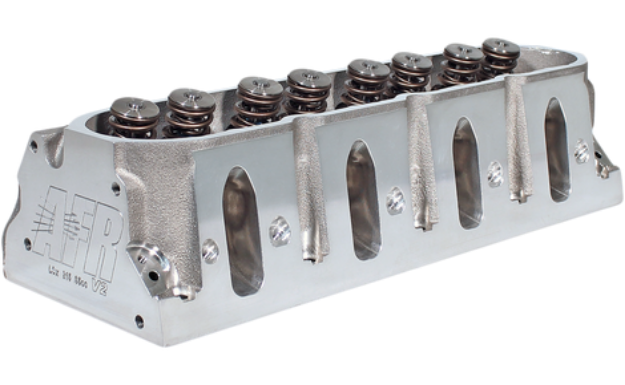

AFR 215cc LS1 Cylinder Head

Previous productAFR 205cc LS1 Cylinder Head

Next productAFR 230cc LS1 Cylinder Head

215cc LS1 Cylinder Head

SKU: AFR-1530

Manufacturer: AFR

Be the first to review this product

Optional:

SPRING UPGRADE 8605: .650 LIFT/7000 RPM HYDRAULIC ROLLER [+$76.00]
EXHAUST UPGRADE 7510: INCONEL EXHAUST VALVE [+$180.00]

$2,461.00

Qty:

AFR’s 215cc LSX heads feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings, Titanium retainers and high quality components throughout. Recommended for moderate street or street/strip builds with displacements up to 408 cubic inches, operating up to 6500 RPM. Requires minimum 3.900” bore size for intake valve clearance.

Package Components include:

100% CNC Ported Combustion Chambers

100% CNC Ported Exhaust Ports

100% CNC Ported Intake Ports

Competition 5-angle Valve Job

8mm Bead Lock Intake Valve, 2.020” x 4.900" Overall Valve Length

8mm Bead Lock Exhaust Valve, 1.600” x 4.900" Overall Valve Length

PAC Racing Spring 1.290" OD Hydraulic Roller Dual Valve Spring,

140 lbs on seat, .600" maximum lift, Max RPM 6300-6500, less than 235* duration, upgraded spring #8019 recommended for higher RPM & larger cams

7° Titanium Retainers 1.245" O.D x .885" I.D x .655" I.D

7° Bead Lock Valve Keepers

Viton Valve Seals .600" O.D x .495" I.D

Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D

Ductile Iron Intake Valve Seats 2.131" O.D x 1.680" I.D x .375" Deep

Ductile Iron Exhaust Valve Seats 1.650" O.D x 1.350" I.D x .375" Deep

8 mm Bronze Valve Guides .502" O.D x 2.100" O.A.L

Overview
Specifications
Reviews
Contact Us

Package Components include:

100% CNC Ported Combustion Chambers

100% CNC Ported Exhaust Ports

100% CNC Ported Intake Ports

Competition 5-angle Valve Job

8mm Bead Lock Intake Valve, 2.020” x 4.900" Overall Valve Length

8mm Bead Lock Exhaust Valve, 1.600” x 4.900" Overall Valve Length

PAC Racing Spring 1.290" OD Hydraulic Roller Dual Valve Spring,

140 lbs on seat, .600" maximum lift, Max RPM 6300-6500, less than 235* duration, upgraded spring #8019 recommended for higher RPM & larger cams

7° Titanium Retainers 1.245" O.D x .885" I.D x .655" I.D

7° Bead Lock Valve Keepers

Viton Valve Seals .600" O.D x .495" I.D

Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D

Ductile Iron Intake Valve Seats 2.131" O.D x 1.680" I.D x .375" Deep

Ductile Iron Exhaust Valve Seats 1.650" O.D x 1.350" I.D x .375" Deep

8 mm Bronze Valve Guides .502" O.D x 2.100" O.A.L
