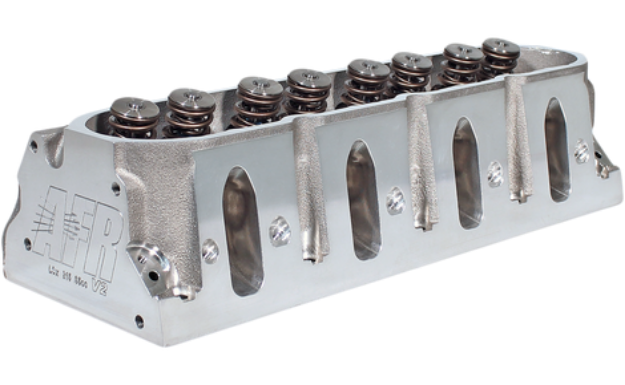

230cc LS1 Cylinder Head
SKU: AFR-1610
Manufacturer: AFR
*
$2,591.00

AFR’s 230cc LSX heads feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings, Titanium retainers and high quality components throughout. Recommended for aggressive street or street/strip builds with displacements up to 427 cubic inches, operating up to 6500 RPM. Requires minimum 3.900” bore size for intake valve clearance.

Package Components include:


100% CNC Ported Combustion Chambers
100% CNC Ported Exhaust Ports
100% CNC Ported Intake Ports
Competition 5-angle Valve Job
8mm Bead Lock Intake Valve, 2.080" x 4.900" Overall Valve Length
8mm Bead Lock Exhaust Valve, 1.600" x 4.900" Overall Valve Length
PAC Racing Spring 1.270" OD Hydraulic Roller Dual Valve Spring, 155 lbs. on seat, .650” maximum lift, Max RPM 7000-7200
7° Titanium Retainers 1.245" O.D x .885" I.D x .655" I.D
7° Bead Lock Valve Keepers
Viton Valve Seals .600" O.D x .495" I.D
Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D
Ductile Iron Intake Valve Seats 2.131" O.D x 1.680" I.D x .375" Deep
Ductile Iron Exhaust Valve Seats 1.650" O.D x 1.350" I.D x .375" Deep
8 mm Bronze Valve Guides .502" O.D x 2.100" O.A.L

AFR’s 230cc LSX heads feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings, Titanium retainers and high quality components throughout. Recommended for aggressive street or street/strip builds with displacements up to 427 cubic inches, operating up to 6500 RPM. Requires minimum 3.900” bore size for intake valve clearance.

Package Components include:


100% CNC Ported Combustion Chambers
100% CNC Ported Exhaust Ports
100% CNC Ported Intake Ports
Competition 5-angle Valve Job
8mm Bead Lock Intake Valve, 2.080" x 4.900" Overall Valve Length
8mm Bead Lock Exhaust Valve, 1.600" x 4.900" Overall Valve Length
PAC Racing Spring 1.270" OD Hydraulic Roller Dual Valve Spring, 155 lbs. on seat, .650” maximum lift, Max RPM 7000-7200
7° Titanium Retainers 1.245" O.D x .885" I.D x .655" I.D
7° Bead Lock Valve Keepers
Viton Valve Seals .600" O.D x .495" I.D
Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D
Ductile Iron Intake Valve Seats 2.131" O.D x 1.680" I.D x .375" Deep
Ductile Iron Exhaust Valve Seats 1.650" O.D x 1.350" I.D x .375" Deep
8 mm Bronze Valve Guides .502" O.D x 2.100" O.A.L
