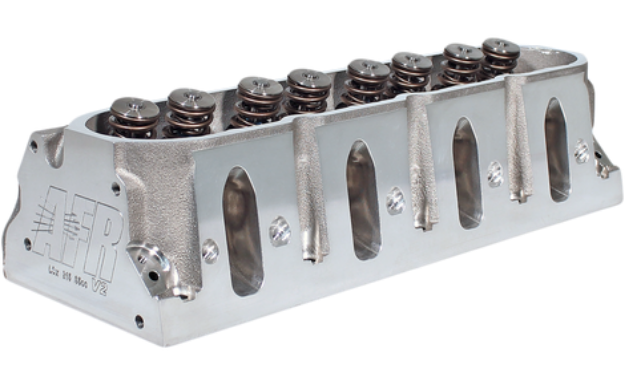

245cc LS1 Cylinder Head
SKU: AFR-1680
Manufacturer: AFR
*
$2,691.00

AFR’s 245cc LSX “Competition” ported heads feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings, Titanium retainers and high quality components throughout. Recommended for race applications or radical “Pro Street” style builds with displacements up to 454 cubic inches, operating up to 6800 RPM. Requires minimum 4.000 bore size for intake valve clearance.

Package Components include:

100% CNC Ported Combustion Chambers
100% CNC Ported Exhaust Ports
100% CNC Ported Intake Ports
Competition 5-angle Valve Job
8mm Bead Lock Intake Valve, 2.165" x 4.900" Overall Valve Length
8mm Bead Lock Exhaust Valve, 1.600" x 4.900" Overall Valve Length
PAC Racing Spring 1.270" OD Hydraulic Roller Dual Valve Spring, 155 lbs. on seat, .650” maximum lift, Max RPM 7000-7200
7° Titanium Retainers 1.245" O.D x .885" I.D x .655" I.D
7° Bead Lock Valve Keepers
Viton Valve Seals .600" O.D x .495" I.D
Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D
Ductile Iron Intake Valve Seats 2.200" O.D x 1.750" I.D x .375" Deep
Ductile Iron Exhaust Valve Seats 1.650" O.D x 1.350" I.D x .375" Deep
8 mm Bronze Valve Guides .502" O.D x 2.100" O.A.L

AFR’s 245cc LSX “Competition” ported heads feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings, Titanium retainers and high quality components throughout. Recommended for race applications or radical “Pro Street” style builds with displacements up to 454 cubic inches, operating up to 6800 RPM. Requires minimum 4.000 bore size for intake valve clearance.

Package Components include:

100% CNC Ported Combustion Chambers
100% CNC Ported Exhaust Ports
100% CNC Ported Intake Ports
Competition 5-angle Valve Job
8mm Bead Lock Intake Valve, 2.165" x 4.900" Overall Valve Length
8mm Bead Lock Exhaust Valve, 1.600" x 4.900" Overall Valve Length
PAC Racing Spring 1.270" OD Hydraulic Roller Dual Valve Spring, 155 lbs. on seat, .650” maximum lift, Max RPM 7000-7200
7° Titanium Retainers 1.245" O.D x .885" I.D x .655" I.D
7° Bead Lock Valve Keepers
Viton Valve Seals .600" O.D x .495" I.D
Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D
Ductile Iron Intake Valve Seats 2.200" O.D x 1.750" I.D x .375" Deep
Ductile Iron Exhaust Valve Seats 1.650" O.D x 1.350" I.D x .375" Deep
8 mm Bronze Valve Guides .502" O.D x 2.100" O.A.L
