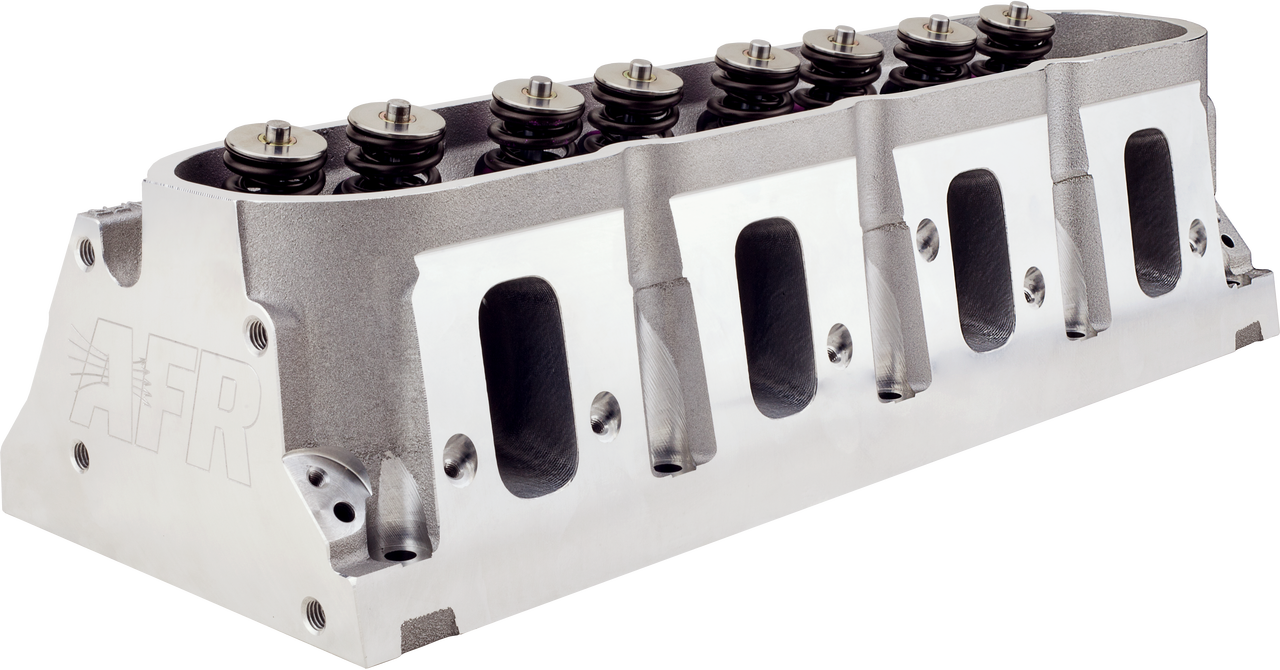

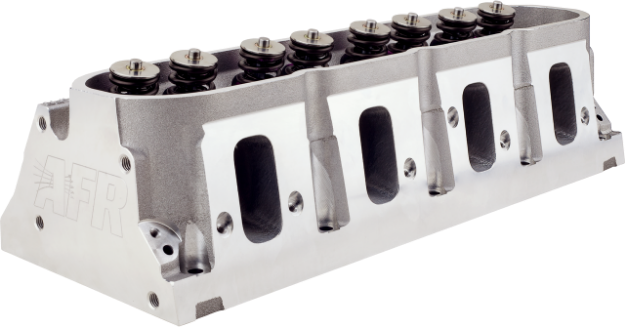

260cc LS3 Cylinder Head
SKU: AFR-184X
Manufacturer: AFR
*
$2,638.00

AFR’s 260cc LS3 “Mongoose” heads feature 100% CNC ported intake, exhaust and chambers using our advanced engineering and flow techniques to produce the ultimate Rectangle Port head available today. Featuring A356 aluminum castings, titanium retainers and the highest quality components, throughout. They’re designed for 4.000 or larger bore applications up to 454 CI, operating up to 7000 RPM. This product is street legal in 50 states from 2007 to 2016 emission controlled vehicles with a General Motors 6.2L LS engine.

Package Components include:

100% CNC Ported Combustion Chambers
100% CNC Ported Exhaust Ports
100% CNC Ported Intake Ports
Competition 5-angle Valve Job
8mm Bead Lock Intake Valve, 2.165" x 5.200" Overall Valve Length
8mm Bead Lock Exhaust Valve, 1.600" x 5.205" Overall Valve Length
PAC Racing Spring 1.270" OD Hydraulic Roller Dual Valve Spring, 155 lbs. on seat, .650 maximum lift, Max RPM 7000-7200
7° Titanium Retainers 1.245" O.D x .885" I.D x .655" I.D
7° Bead Lock Valve Keepers
Viton Valve Seals .600" O.D x .495" I.D
Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D
Ductile Iron Intake Valve Seats 2.200" O.D x 1.750" I.D x .375" Deep
Ductile Iron Exhaust Valve Seats 1.650" O.D x 1.350" I.D x .375" Deep
8 mm Bronze Valve Guides .502" O.D x 2.550" O.A.L
Rocker Rail Stand

AFR’s 260cc LS3 “Mongoose” heads feature 100% CNC ported intake, exhaust and chambers using our advanced engineering and flow techniques to produce the ultimate Rectangle Port head available today. Featuring A356 aluminum castings, titanium retainers and the highest quality components, throughout. They’re designed for 4.000 or larger bore applications up to 454 CI, operating up to 7000 RPM. This product is street legal in 50 states from 2007 to 2016 emission controlled vehicles with a General Motors 6.2L LS engine.

Package Components include:

100% CNC Ported Combustion Chambers
100% CNC Ported Exhaust Ports
100% CNC Ported Intake Ports
Competition 5-angle Valve Job
8mm Bead Lock Intake Valve, 2.165" x 5.200" Overall Valve Length
8mm Bead Lock Exhaust Valve, 1.600" x 5.205" Overall Valve Length
PAC Racing Spring 1.270" OD Hydraulic Roller Dual Valve Spring, 155 lbs. on seat, .650 maximum lift, Max RPM 7000-7200
7° Titanium Retainers 1.245" O.D x .885" I.D x .655" I.D
7° Bead Lock Valve Keepers
Viton Valve Seals .600" O.D x .495" I.D
Hardened Valve Spring O.D Locator 1.380" O.D x .570" I.D
Ductile Iron Intake Valve Seats 2.200" O.D x 1.750" I.D x .375" Deep
Ductile Iron Exhaust Valve Seats 1.650" O.D x 1.350" I.D x .375" Deep
8 mm Bronze Valve Guides .502" O.D x 2.550" O.A.L
Rocker Rail Stand

Installation instructions

Download Instructions
