2003-07′ Silverado/Sierra 4.8l, 5.3l, 6.0l, 6.2l
V3 all new Cold Side features a much larger 4″ Thick Intercooler and full 3″ Aluminum Cold Side
piping with integrated 50mm BOV flange and threaded IAT Sensor bung for 03-07 Front ends with factory E-fans.

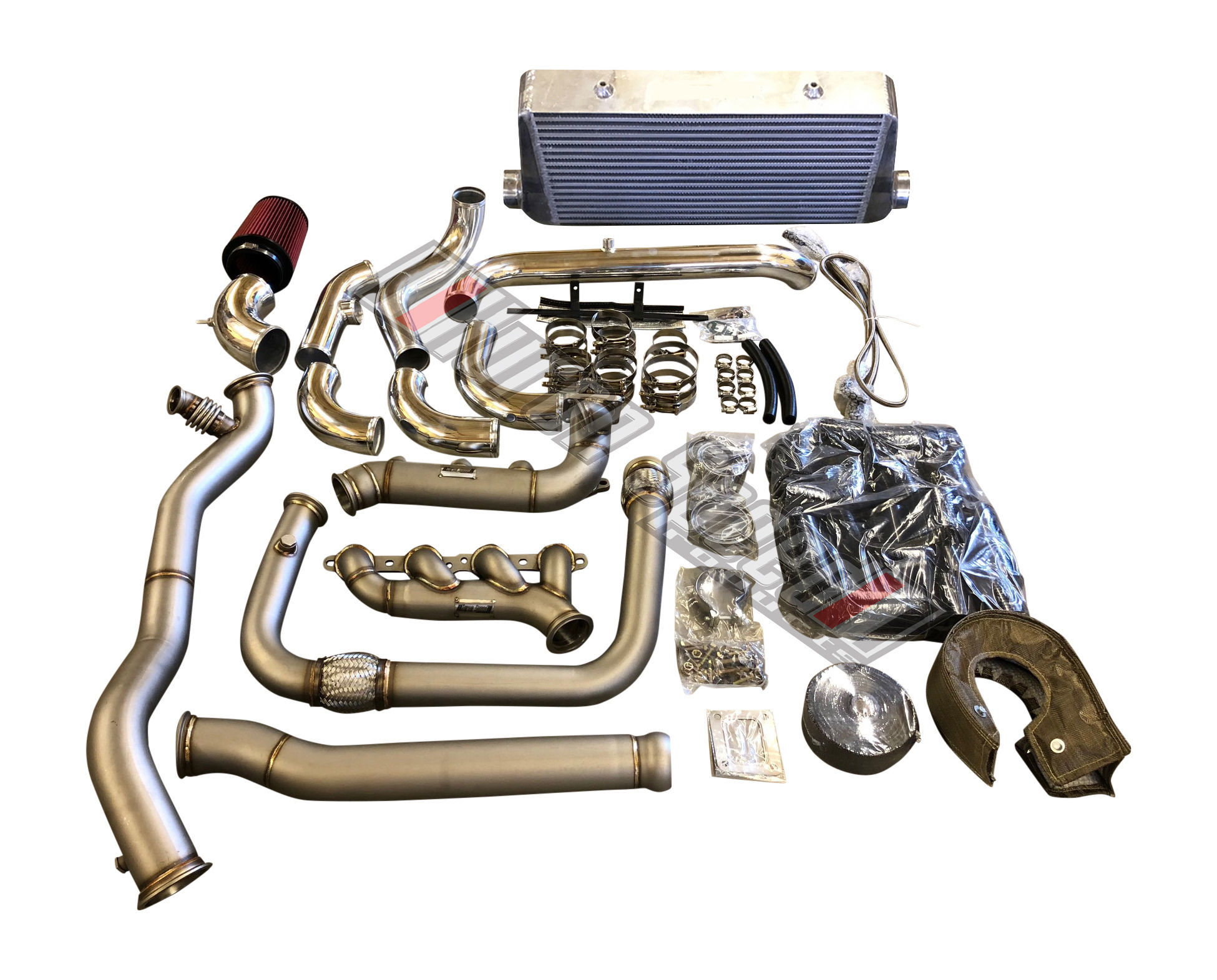

V3 Kit Components:
-Stainless .120 wall Passenger turbo log and Stainless drivers side manifolds w/ interlocking V-band flanges
-Stainless crossover with improved flex locations for easier install and alignment and interlocking V-band flanges
-3″ Stainless downpipe with wastegate recirculation and bung for wideband O2 sensor, 2nd piece 3″ downpipe to connect to OEM Catback location.
**Optional 4″ Downpipe withOUT WG recirculation for PT88 turbo
**Optional 4″ Downpipe with WG recirculation for S400 Borg Warner turbos, also includes components to fit the cold-side.
-All new style of Aluminum cold side with IAT Sensor bung set up for a Speed Density tune, 50mm BOV flange, and 4″ thick intercooler
-Intercooler bracket, bolt on
-All required Clamps/Couplers
-Included coolant line extension fittings
-Included Oil feed and drain line kit
-Included turbo air intake (4″) with air filter and PCV port
-Included roll of heat wrap
-Included T4 turbo blanket
-Hardware to Install
*Optional custom A/C line to provide plenty of clearance without having to hassle with massaging your OEM hardline
Features & Benefits of the Huron Speed Truck V3 Intercooled turbo kit:
*Extra thick .120 wall stainless steel turbo manifold will have no issues holding up to the high heat and weight of the turbocharger. Worries about cracking manifolds is a thing of the past!
*Wastegate port is in the line of flow at the front of the manifold which will collect exhaust gasses from the entire system (both banks) as well as using a larger 44mm flange to control boost. No need to worry about boost creep issues!
*Wastegate tube features a nice bellow in line for an easy install and alignment of the wastegate recirc. with the downpipe for the recirculating WG discharge!
*(2) bellows are used in the crossover pipe to allow easy alignment, seal, and connection to the manifolds. With one bellow per side it will allow easier alignment and install, as well as less stress on the system and the bellows = longer life!
*Recirculating the WG Discharge into the downpipe is a STANDARD feature!
*Bungs for Primary O2 Sensors AND for a wideband O2 with plug is a STANDARD feature!
*System as a whole was made to provide a clean looking install, using great materials, built to make for an easy install without having to fight aligning pipes together along with easy to install v-band clamps. Boost control with a proper wastegate placement was high on the list to prevent boost creep.
*4″ Downpipe option available to bolt up to larger Mid-frame PT88 turbo and now also Borg Warner S400 turbos
*Cold Side Tubing made from Aluminum provide a clean filterd air intake for the turbocharger as well as intercooler and tubing to fit 03-07 trucks to reliable make more power with more boost utlizing cooled air from the intercooler!
*Cold Side Tubing features a 50mm BOV flange and Threaded IAT Sensor Bung with a large 4″ Thick Intercooler
**Retains factory Air Conditioning, requires some bending/massading to OEM hardline near the accumulator OR add on our Custom A/C Line for better clearance around your downpipe!
**Intercooler and cold-side piping installation requires movement of Trans-cooler, and minor trimming possible to grill and 2 ears on bumper to fit the intercooler.
**Flex section on passenger side will not clear 4L80 transmission. Trimming of transmission ear required on 4L80 transmissions only.
*Include a Turbo, Wastegate, and BOV at a big discount to make your hotside kit more complete.
