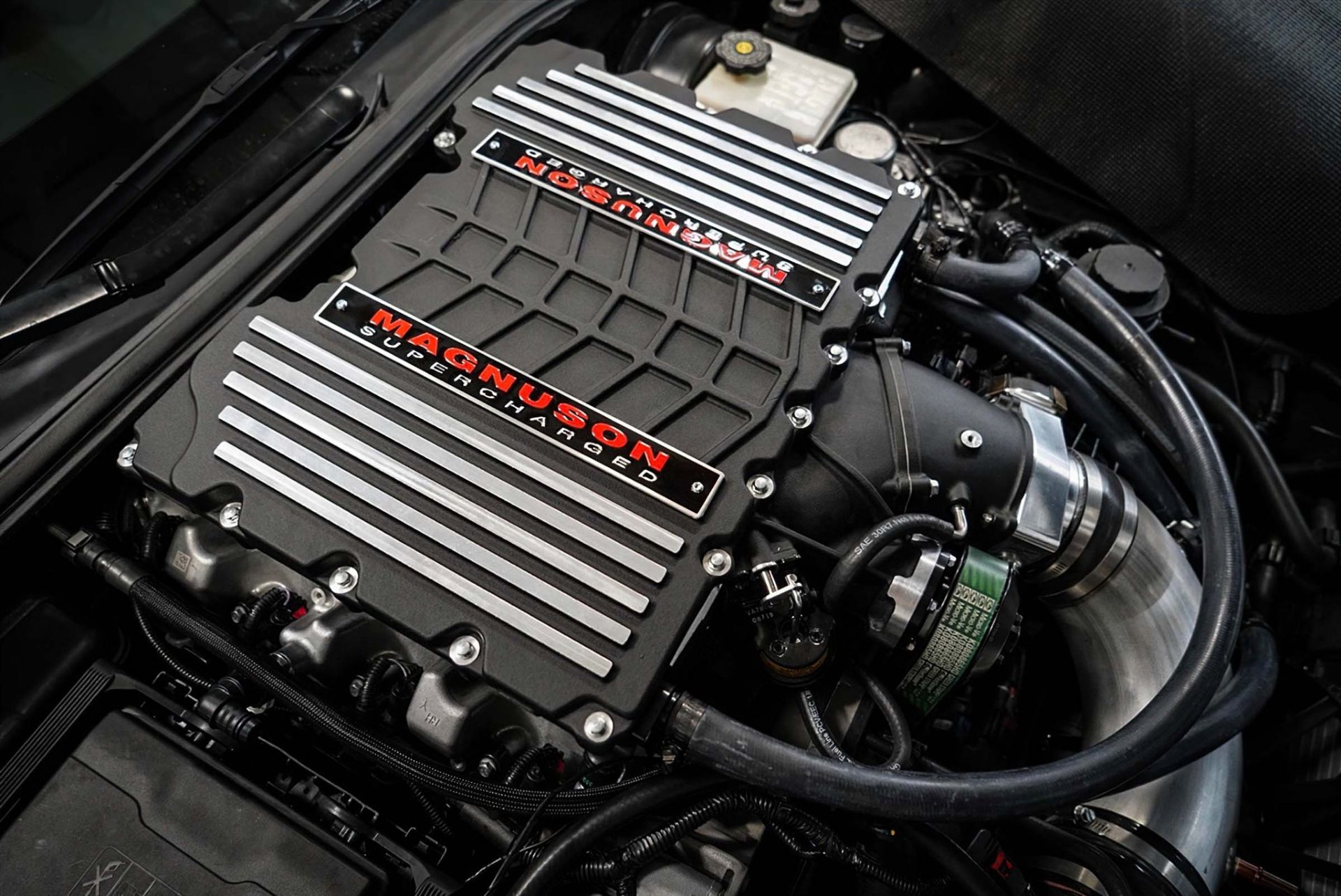

Take your Z06 to the next level with Magnuson’s TVS2650 Magnum Supercharger System! Built off of our premium Magnum Performance Line, our Corvette Magnum System will give your engine an incredible 76 extra horsepower: 726 hp and 690 ft-lbs at the crank! The system has been designed to fit under the hood of a stock C7 Z06, all while featuring two massive charge air coolers for maximum cooling capability.
- 726 hp and 690 ft-lbs at 13 lbs of boost.
- Magnuson TVS2650 Supercharger System designed to mount to GM LT4 heads with OEM look, fit and finish.
- Utilizes Eaton TVS Technology incorporating high helix, four lobe rotors for maximum supercharger efficiency across entire speed range.
- Utilizes patented Dynamic Flow Tuning (DFT) inlet porting.
- Designed to fit under the hood of LT4 vehicles (slight modification may be required for Corvette model with pulley sizes larger than 70mm.
- Bolt-on anodized billet cartridge-style front drive allows for future belt line upgrades.
- High flow dual charge air cooler set-up with ¾" water inlet and outlet ports reduce coolant restriction, allowing maximum flow with extremely high cooling efficiency.
- CNC-machined ports for optimized airflow into engine cylinders.
- Vacuum bypass system with instantaneous boost response designed to unload supercharger at engine idle and part-throttle for improved fuel economy. Intercooled bypass air is recirculated through the supercharger for rapid cooldown and ultimate performance.
- Proven maintenance-free supercharger technology. No added complexity of external supercharger oil cooler/heaters for extreme climates.
- Includes handheld tuner device, calibration, and detailed step by step instructions for a seamless installation experience.
- 2014-2019 Chevrolet Corvette Z06 LT4 Engines
