T6 Turbo Kit for Trailblazer SS
SKU: t-tbss
Manufacturer: Huron Speed Products
$2,648.00

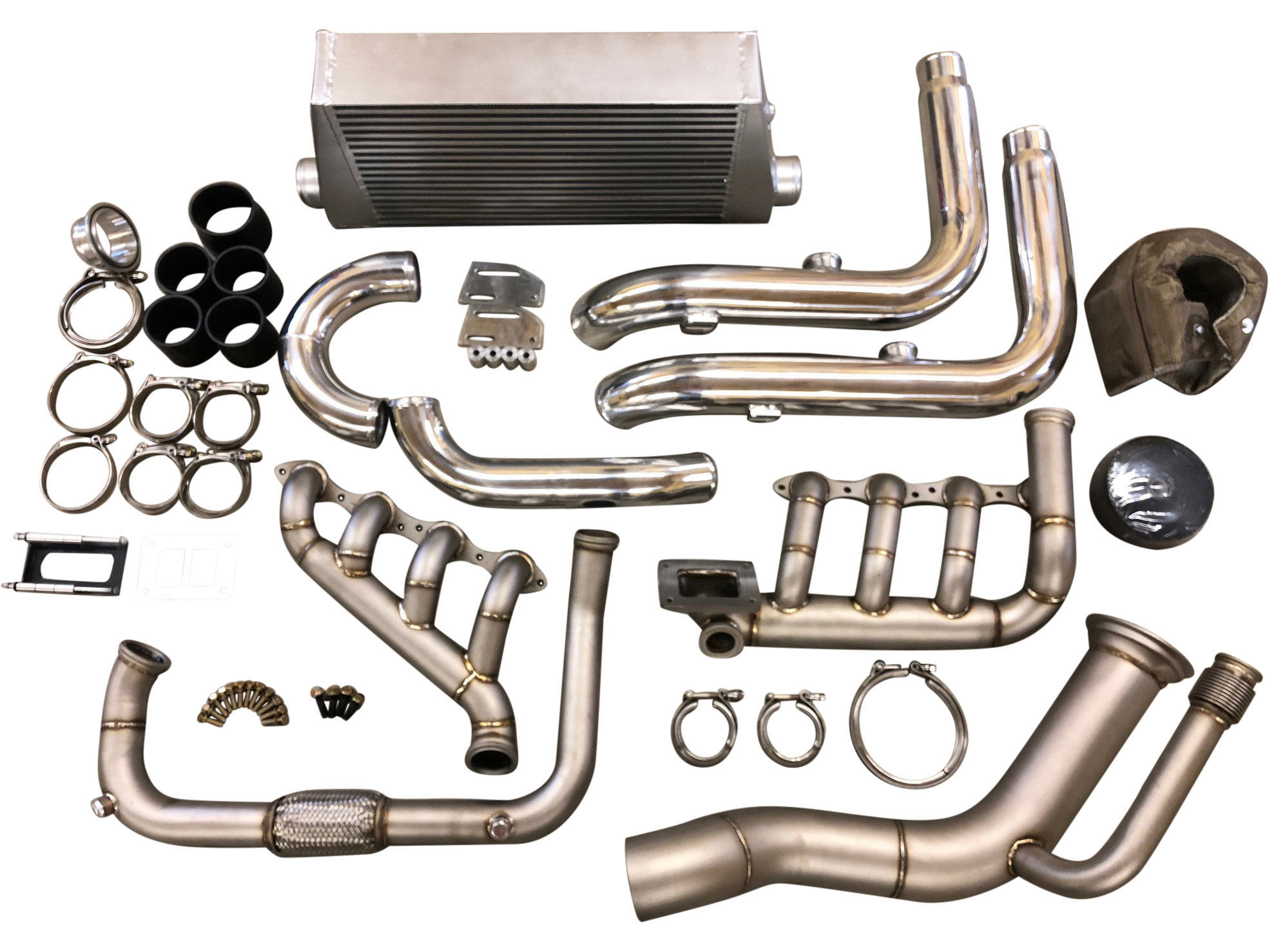

Kit includes: (*Silver intercooler shown, kit will include Black finish on Intercooler)

  • Stainless Steel, Vbanded, extra thick .120 wall T6 Turbo Manifold
  • Stainless Steel, Vbanded, drivers side tubular manifold for easy installation
  • 2.5” Stainless Crossover with 44mm WG flange and bungs for primary O2 sensors. V-banded for easy installation
  • 5″ to 4″ 1-piece downpipe. S400 Flanged.
  • Extra large Black Series 4.5″ Thick Intercooler included. Drill/Bolt on brackets included, optional weld on brackets available.
  • Aluminum Cold side piping from Turbo to Intercooler and Intercooler to Throttle Body with 50mm BOV flange and threaded IAT sensor bung. Piping included to fit both OEM intake as well as a Holley Hi-Ram.
  • All necessary couplers and clamps, only straight couplers are used in this kit to avoid any worries of blowing out elbow couplers! Entire hotside consists of all v-band connections
  • Grade 8 Bolt/Hardware Kit included!
  • T6 Oil Feed and Drain Line kit INCLUDED
  • T6 Turbo Blanket INCLUDED
  • 50′ Roll of Black Heat Wrap INCLUDED
  • Coil Pack relocation brackets for passenger side and proper length plug wires for the relocation INCLUDED
  • Can retain AC with some minor bending of the lines.

* Kit requires trimming of passenger side inner fender metal. Removal of front bumper bar for the intercooler placement and drilling for the intercooler bracket hardware.

Optional:

Turbo

Wastegate

BOV



Note: Huron kits are made when ordered and can take several weeks before shipping.
